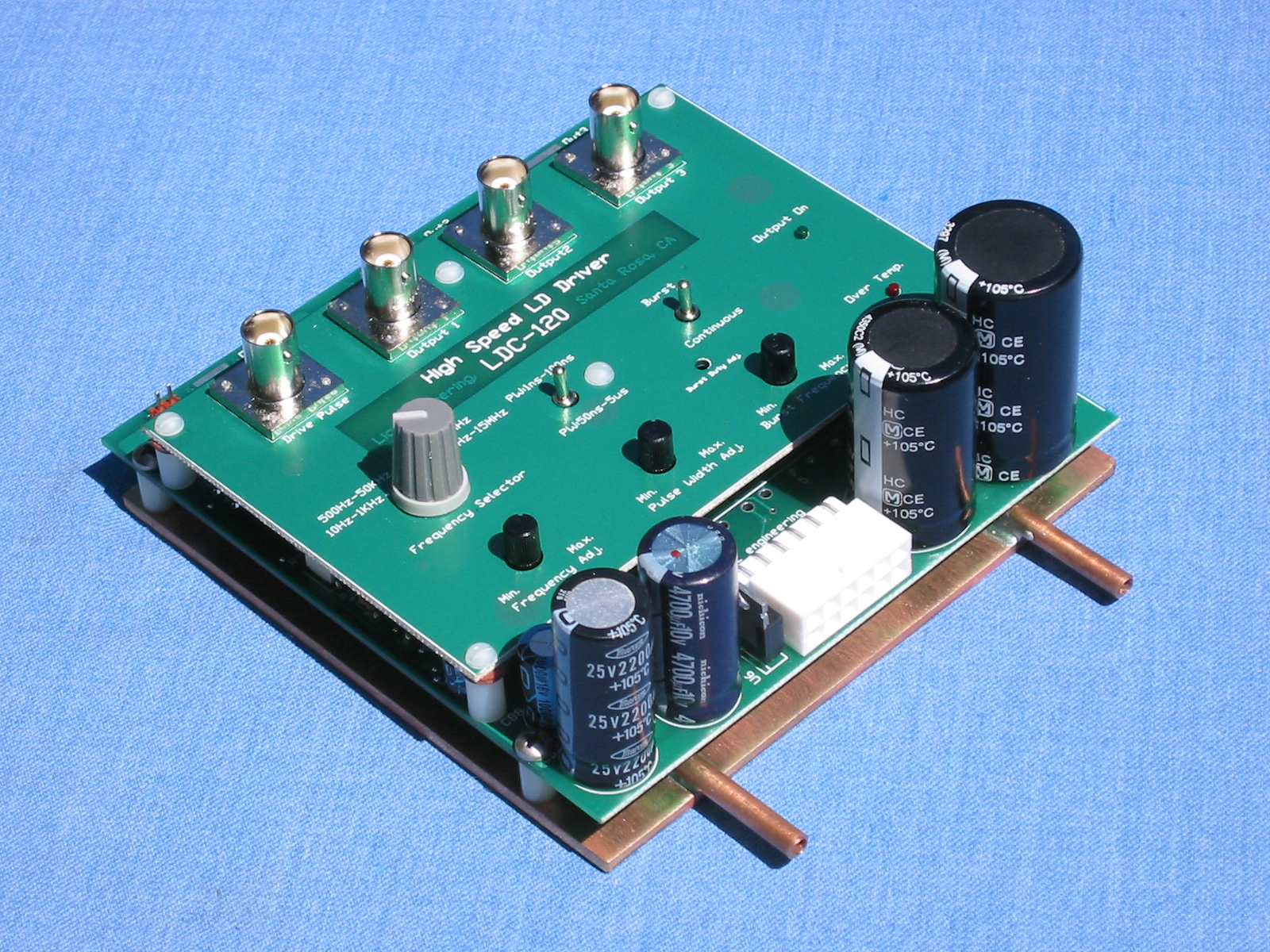

LDC-120/250 is designed for multi-purpose high speed/high power laser driver and high voltage pulse generator applications. This unit works together with a main unit of LD-1500/3000 but can be operated independently as well. Please contact LIC Engineering for details.
- Air cooled, or Water Cooled Laser Driver/Power Supply.
- The unit can be used as a multi-purpose high speed/high voltage/high power laser diode driver/pulse generator.
- Special made stripline available.
- High Speed (15MHz), Stable(40ppm/C) internal PWM pulse generator included.
Key Features
- Compact High Peak Pulsed Laser Diode Driver
- High voltage, High power Pulse Generator
- Water Cooled, High Power Laser Diode Driver
- Water Cooled Laser Diode Driver
- High Speed Pulse Generator
- High Current Pulse Generator
Specifications
Specification of LDC-120/250
Output 1 (Burst Pulse)
Min. Pulse Width:1.5nsOutput Voltage7VOutput Current:2AMax. Pulse Rate:15MHzBurst pulse rate:10KHz-1MHz
Burst pulse width:200ns-10MHz
Output 2
Min. Pulse Width:5nsMax. Pulse Width:1us*1)Max. Pulse Rate:1 MHz*1)Max. Output Voltage450VOutput Current:500A*1): Max. pulse width & pulse rate is limited by an average power of the unit.
Output 3 (Fixed Pulse Width)
Min. Pulse Width:10nsMax. Pulse Width:100ns*1)Max. Pulse Rate:50 KHz*1)Max. Output Voltageup to several KVOutput Current:up to several KA
*1): Max. pulse width & pulse rate is limited by an average power of the unit.
Dimension2.40″(H) x 5.1″(W) x 5.1″(L) – 2.40″(H) x 8″(W) x 8″(L) inchWeight1.5 lb – 4.3 lb
CoolingAir Cooled, or Water CooledOption 1Special made stripline to connect between the unit and load.
Option 2
Please contact to factory for your unique applications. We can make many special units for your specific needs.
