Below is a listing of our laser diode drivers and pulse generators for applications in aerospace, defense and other high tech industries. Please contact us with any questions.
- Huge-Current Laser Diode Driver: Up to 10KA/100us
- Powerful QCW Capacitor Charging Power Supply up to 2MW QCW: communicates closely by the feedback circuit to keep a stable and precise constant current to the load
- Huge Energy LD Driver: 200 Jules per Single Pulse
- Touch Panel Control: Optional tablet terminal can be a touch screen control
- Double Isolated USB Interface for the highest noise immunity in the harsh industrial environment
- High Power Laser Diode Driver: Up to 10KW CW/1MW QCW
- Powerful QCW Capacitor Charging Power Supply up to 1MW QCW: communicates closely by the feedback circuit to keep a stable and precise constant current to the load
- Huge Capacitor Bank: up to 500 F (Farad) for the Best Current Droop at High Current & Long Pulse
- Ultra-Width Pulse at huge current: 60ms pulse width at 1.3KA current with 1% current droop!!
- Touch Panel Control: Optional tablet terminal can be a touch screen control
- High Power/High Speed LD Driver: 2KV/5KA at 10us-50us rise/fall time
- High Performance Digital Scope: up to 0.7ns/500MHz and 29ps/12GHz (Sampling Scope) as an option
- Double Isolated USB Interface for the highest noise immunity in the harsh industrial environment
- Best Selling Product & Competitive Price
- Ultra-High Power Laser Diode Driver up to 10KW CW/1MW QCW
- Powerful QCW Capacitor Charging Power Supply: Up to 1MW QCW, communicates closely by the feedback circuit to keep a stable and precise constant current to the load
- Huge Capacitor Bank: up to several hundred Farad for the Best Current Droop at High Current & Long Pulse
- Ultar-Wide Pulse at huge current up to 60mseconds at 1.3KA
- High Power/High Speed LD Driver: 500V/500A at 100ns rise/fall time
- Competitive Price

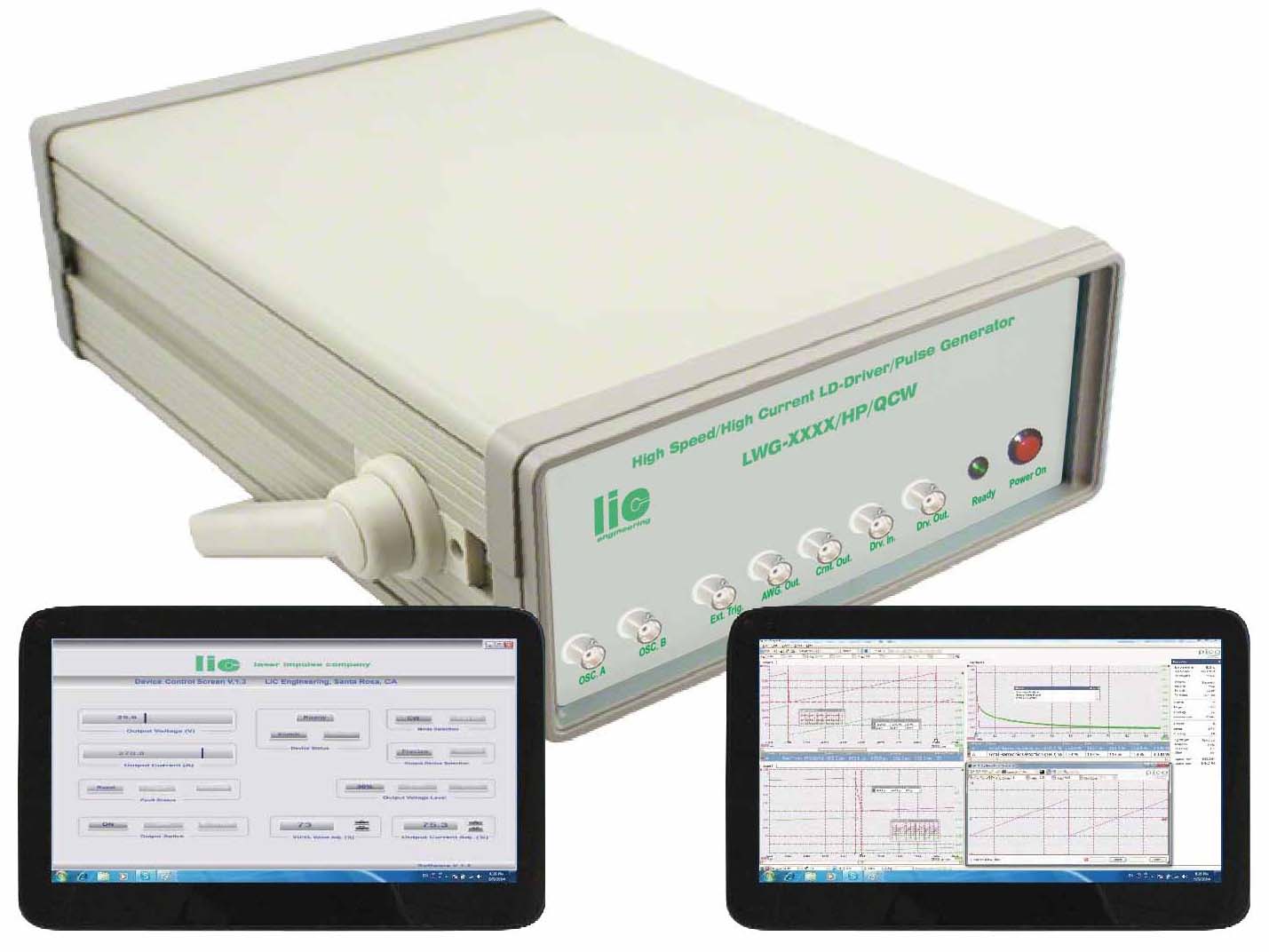

- High Speed/High Current Laser Diode Driver: Rise/Fall Time Less than 1ns, Speed up to 200MHz/9A
- Touch Panel Control: Optional tablet terminal can be a touch screen control
- High Performance Digital Scope: up to 0.7ns/500MHz and 29ps/12GHz (Sampling Scope) as an option
- Double Isolated USB Interface for the highest noise immunity in the harsh industrial environment
- LD-XXXX/QCW is QCW high power laser diode drivers capable of 1MW(1KV/1KA) output power. LD-XXXX/QCW has many features such as a built in powerful capacitor charging power supply (average power to 25KW), accurate voltage/current tracking system, complete protection circuit, and high speed power current sensing / monitoring system.
- LIC Engineering's power electronics technologies make LD-XXXX/QCW so compact (U3 - U7) but powerful (25KW) and high efficient.
- The QCW time period is limited by both average powers and current droop specified.
- Charging capacitor up to 0.64 F
Narrow Pulse, Gas Discharge & High Power Laser Diode Power Supply/High Current Pulse Generator.
LS-XXXX -series high frequency, high power pulsed laser diode drivers/power supplies, and gas discharge power supplies can achieve the pulse rate up to 5MHz with the pulse width of 5ns-50ns.
- High Speed Laser Diode Driver: Maximum frequency up to 5MHz
- High Power Pulsed Laser Diode Driver: Up to 2KW continues power.
- Pulsed Laser Diode Driver/High Voltage Pulser: Up to 15KV
- Multi-Channel Gas Discharge Driver.
- LD-XXXX/QCW/HS is QCW high speed & high power laser diode drivers capable of 1MW(1KV/1KA) output power. LD-XXXX/QCW/HS has many features such as a built in powerful capacitor charging power supply (average power to 25KW), accurate voltage/current tracking system, complete protection circuit, and high speed power current sensing / monitoring system.
- LD-XXXX/QCW/HS has 70ns rise time, minimum pulse width of 200-300ns.
- The QCW time period is limited by both average powers and current droop specified. Refer to Operating Manual for the relation between QCW time period and charging capacitor.
- Maximum charging capacitor up to 0.64 F
LSP-2500-15KV-20NS is designed for driving Vcsel (Vertical-Cavity Surface-Emitting Laser) diode and for High Speed Gas Discharge Applications. Applications include:
- High Current Pulse Generator, High Power Diode Laser Driver/Power Supply
- Pockels Cell Driver, High Current Pulsed Diode Laser Power Supply/Driver
- High Voltage Pulse Generator, High Power Laser Diode Driver
- H.V Trigger Circuit
- Thyratron Replacement
- Vecsel Laser Diode Driver
- High Power Laser Diode Driver/Power Supply
LSP-120 high speed laser diode driver is designed for space & weight limited special applications. It contains a built-in H.V power supply and oscillator so that user can supply only low DC voltage to operate the unit. It contains also a current monitor output.
- Pulse Rate from 1Hz to 10KHz
- Pulse Width from 5ns to 10ns
- High Current from 0A to 120A
- High Current Pulse Generator
- LD-1500A/3000A is high power QCW laser diode drivers/power supply capable of 20KW (170V/120A) QCW output power. The QCW time period is limited by both average powers and current droop specified. Please refer to Product Manual for detail.
- LD-1500A/3000A are also designed as high speed, high current CW/pulse laser diode drivers, of which CW power are 1.5KW and 3KW respectively and the peak current is up to 350A with the rise time of 50ns in Super Pulse mode.
- LD-1500A/3000A uses a high frequency capacitor charging power supply to convert AC input power to a desirable DC output voltage. A DC power supply for QCW laser diode driver requires a special power supply since the load impedance changes from a short condition to an infinite impedance. To keep high efficiency and charge up the output capacitor in short time, the DC power supply should be specially designed for this purpose.
- With a sub unit of LDC-120/250/XXX-XX, the outputs will extend up to 15MHz, 1.5ns pulse width, and several KA/KV output. Please refer to LDC-120/250 Manual for details.

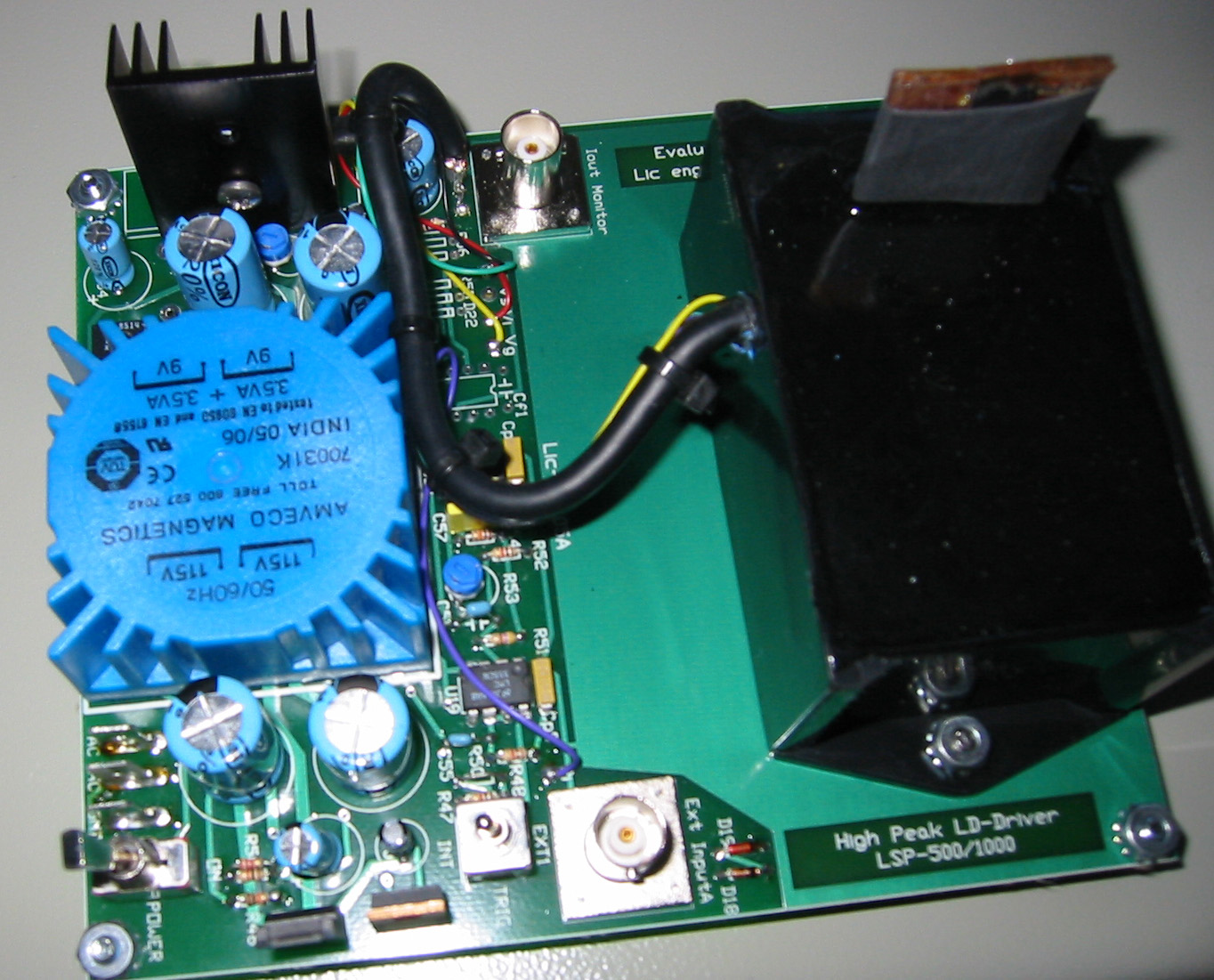

LSP-XXXX-XX series high power laser diode driver, high voltage pulser and high voltage pulse generator have many models from 500A-2.5KA, the output voltages from 1.4KV to 5KV and the rise time from 100ps to 15ns.
- Picosecond to Nanosecond Pulse Generator: Rise time from 100ps to 15ns
- High Current Pulse Generator: From 500A to 5KA
- High Voltage Pulse Generator: From 500V to 15KV
- Pulse Rate from 1Hz to 100Hz
- LSP (Lic Super Pulse) is the original development by LIC Engineering
- LSP-XXXX-XX series high power laser diode driver/power supply, high current pulser and high voltage pulse generator have many models from 500A-5KA, the output voltages from 1.4KV to 15KV and the rise time from 3ns to 15ns. Applications include:
- High Current Pulse Generator: From 500A to 5KA
- High Voltage Pulse Generator: From 500V to 15KV
- High Speed Pulser: Rise time from 3ns to 15ns
- High Speed H.V Switch: Pulse Rate from 1Hz to 10KHz
- LSP (Lic Super Pulse) Operation
- LSP-XXXX-XX series high power laser diode driver/power supply, high current pulser and high voltage pulse generator have many models from 500A-5KA, the output voltages from 1.4KV to 15KV and the rise time from picoseconds to nanoseconds. Applications include:
- High Current Pulse Generator: From 500A to 5KA
- High Voltage Pulse Generator: From 500V to 15KV
- Pulsed Laser Diode Power Supply
- Pulse Rate from 1Hz to 10KHz
- LSP (Lic Super Pulse) Operation
LDC-120/250 is designed for multi-purpose high speed laser diode driver/high power laser driver and high voltage pulse generator. This unit works together with a main unit of LD-1500/3000. However, It can be an independent unit too. Please contact factory for detail.
- Air cooled, or Water Cooled Laser Diode Driver/Power Supply.
- The unit can be used as a multi-purpose high speed/high voltage/high power laser diode driver/pulse generator.
- Special made stripline available.
- High Speed (15MHz), Stable(40ppm/C) internal PWM pulse generator included.
- High Power/High Speed LD Driver: 500V/500A at 500ps-15ns rise/fall time
- Touch Panel Control: Tablet PC can be a touch screen control
- High Resolution Vertical Axis of the Digital Scope: 8bit to 12bit (enhanced) to measure and read the exact current values
- Easy Analyze of LD Current Waveforms: Up to 16 views of the scope window at a time
- Precise Pulse Generator: Pulse Parameter of 0.03Hz-1MHz/1%-100% duty & 50ppm Crystal Oscillator & Low Jitter PLL Pulse Generator
- Complete Square Wave Output: High speed rise-fall time
- Double Isolated USB Interface for the highest noise immunity in the harsh industrial environment
- High Power Pulse Generator
- Competitive Price
