• LSP-XXXX-XX series high power laser diode driver/power supply, high peak current pulser and high voltage pulse generator have many models from 500A-5KA, the output voltages from 1.4KV to 15KV and the rise time from 3ns to 15ns. Applications include:
  • High Current Pulse Generator: From 500A to 5KA
  • High Voltage Pulse Generator: From 500V to 15KV
  • High Speed Pulser: Rise time from 3ns to 15ns
  • High Speed HV Switch: Pulse Rate from 1Hz to 10KHz
  • LSP (LIC Super Pulse) Operation

Key Features

  • High Current: up to 5KA (capable of LSP )
  • High Speed Pulser: Rrise time of 3ns-15 ns
  • Pulse Width of 5ns-100ns
  • High Voltage from 1.4KV-15KV
  • Built-in H.V power supply

LSP-XXXX-XX High Peak Current Pulser Specifications

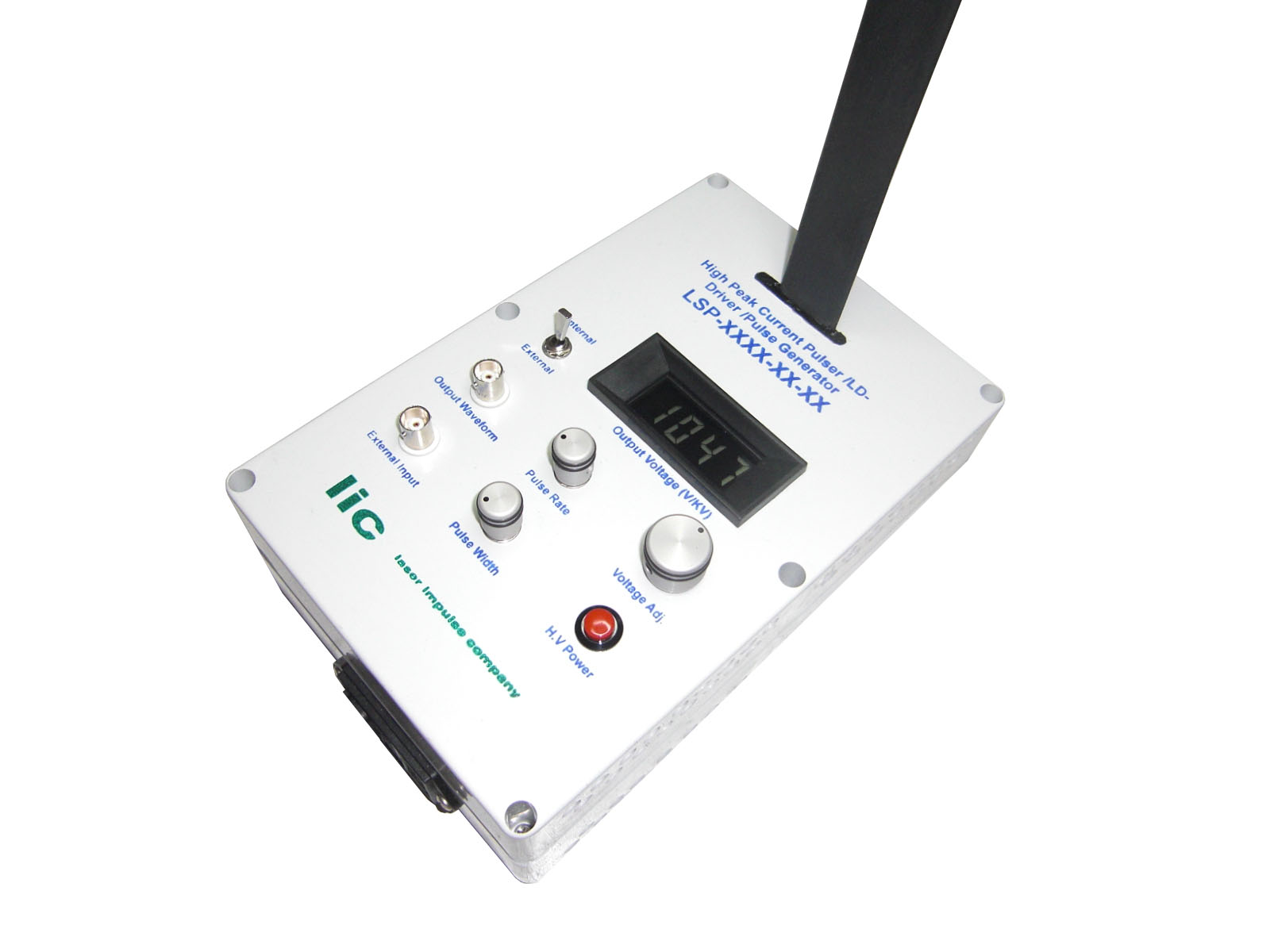

(Waveform taken with LSP-5000-20-XK)

AC Input Voltage:115V
Output Current:LSP (LIC Super Pulse): 5.0KA, pulsed peak current

Output Voltage:1.0KV-15KV (User Selectable)

Pulse Shape:Exponential, Refer to Operating Manual.

Rise Time:3ns – 15ns (typical)

Pulse Width (typical) :20ns*1)

Maximum Pulse Rate: 50Hz*2)

Current Monitor: 50ohm BNC, 10mV/A

Note *1): Pulse Width is user selectable (Factory Set).

Note *2): Maximum Pulse Rate is dependent on the capacity of the HV source. Contact factory for details.

Dimension (Including HV power supply): 5.75″(W) x 8.75″(L) x 3.1″(H)  Excluding Stripline,

Stripline Length:From 1″ to 10″ (Contact to Factory)

Weight:5 lb

Cooling:Convection Air Cooled
