- LSP-XXXX-XX series high speed laser diode driver/power supply, high current pulser and high voltage pulse generator have many models from 500A-5KA, the output voltages from 1.4KV to 15KV and the rise time from picoseconds to nanoseconds. Applications include:
- High Current Pulse Generator: From 500A to 5KA
- High Voltage Pulse Generator: From 500V to 15KV
- Pulsed Laser Diode Power Supply
- Pulse Rate from 1Hz to 10KHz
- LSP (LIC Super Pulse) Operation
Key Features
- High Current: up to 5KA (capable of LSP )
- High Speed Pulser/Pulse generator: Picoseconds to nanoseconds rise time
- Pulse Width of 5ns-100ns
- High Voltage from 1.4KV-15KV
- Built-in H.V power supply
LSP-XXXX-XX High Speed Laser Diode Driver Specifications

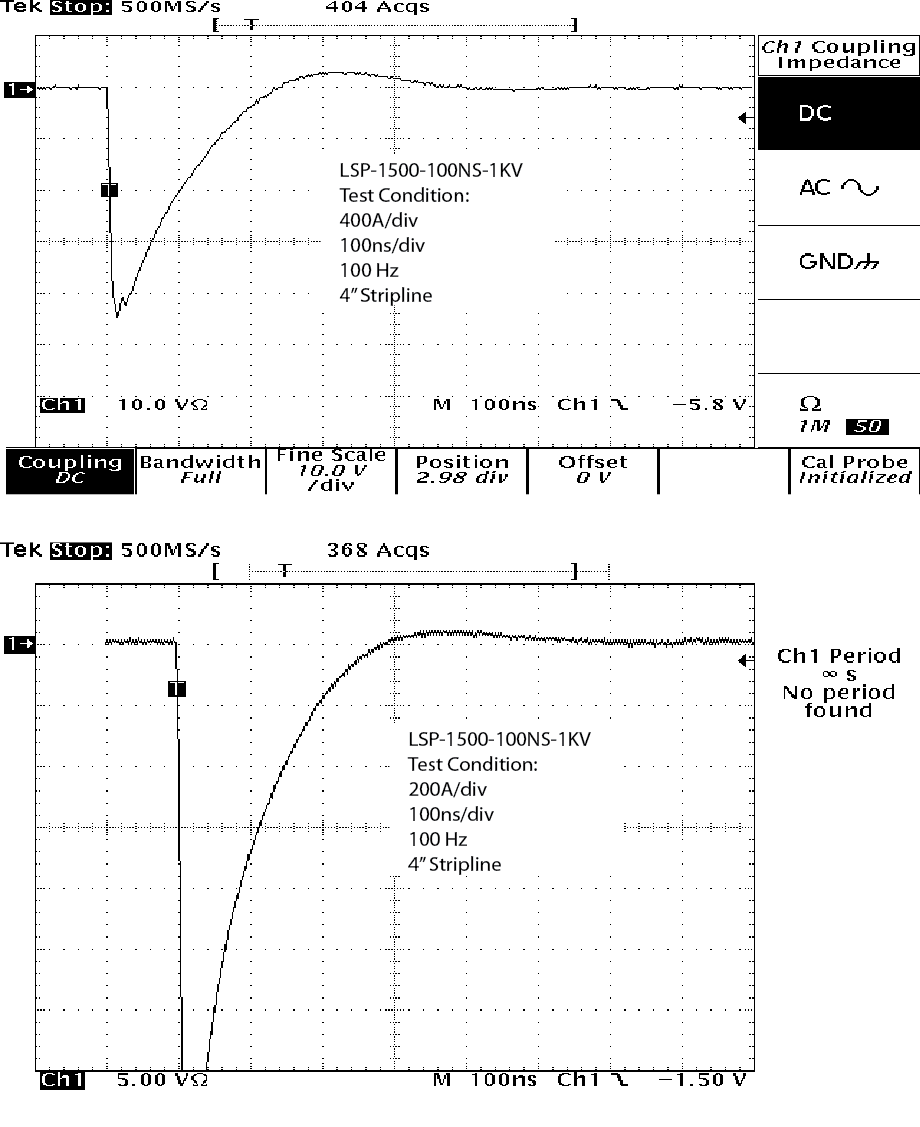

LSP-1500-100NS Waveform

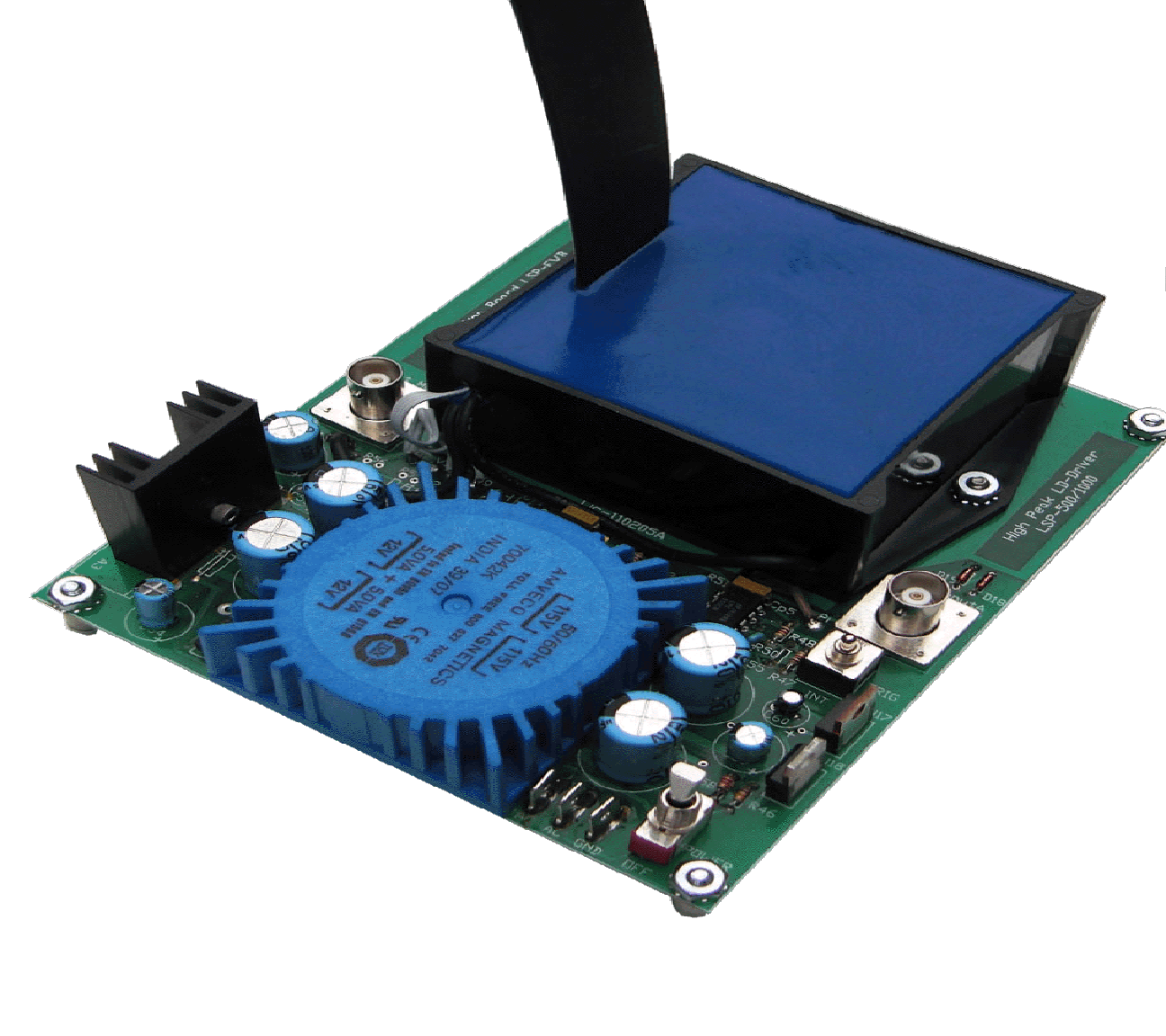

Evaluation Board LSP-EVB
AC Input:100V-115VExternal Pulse Input:50ohm BNC, 10-12V, 10ns rise timeCurrent Monitor:50ohm BNC, 10A/vInternal Pulse Input:100ns Pulse Width, 10ns Rise TimePulse Rate:1Hz-10KHz Rep. Rate (Adjustable), *2)
LSP-XXXX-XX-XX:
- Output Current:
- LSP (Lic Super Pulse): 500A – 5KA Pulsed Peak Current
- Output Voltage:
- 1.4KV-15KV (User Selectable)
- Pulse Shape:
- Exponential. Refer to Operating Manual.
- Rise Time:
- 100ps-15ns
- Pulse Width (typical):
- 5ns-100ns*1)
- Maximum Pulse Rate:
- 10KHz*2)
- Output Terminal:
- 0.6″(W)x0.6″(L) – 1.2″(W)x15″(L) Stripline
- Dimension (Including H.V power supply)
- 2″(W)x3″(L)x1″(H) – 4″(W)x3″(L)x1″(H) excluding flanges.
- Weight
- 8.5 OZ – 8lb
- Cooling
- Convection Air Cooled.
- Note *1):
- Pulse With is user selectable (Factory Set).
- Note *2):
- Maximum Pulse Rate is depend on the capacity of the H.V source. Refer to Operating Manual for detail.
