- HVC-XXXX is high power, high voltage/high current pulse generator/switch capable of 30KV/500A
- Compact Design achieved by using new device & technology
- Complete Square Wave Output
- High Efficient built in Power Supply accomplished by a zero-current switching
- 50ppm Crystal Oscillator & Low Jitter PLL Pulse Generator
- Direct Stripline for any output impedance
- All functions are controlled by cusomer’s PC
- Double Isolated USB Interface for the highest noise immunity in the harsh industrial environment
- Competitive Price
Key Features
- Ultra High Speed H.V Switch/Pulse Generator: From 5ns-20us rise time
- High Power CW: Up to 25KW output power
- Complete USB Control: Everything is controlled by user’s PC
- Accurate Voltage & Current Tracking System
- Pulse Rate from 0.001Hz to 5MHz (Depends on the unit)
- Pulse Width from 10ns to 1000S (Depends on the unit)
- Complete Protection Circuits: Over Current (100ns response time), Over Temp, Over Load, Pulse Rate & Width, Interlock
- Precise, High Speed, Current Sense Output: +/- 1%
- Built-in High Power Supply up to 25KW

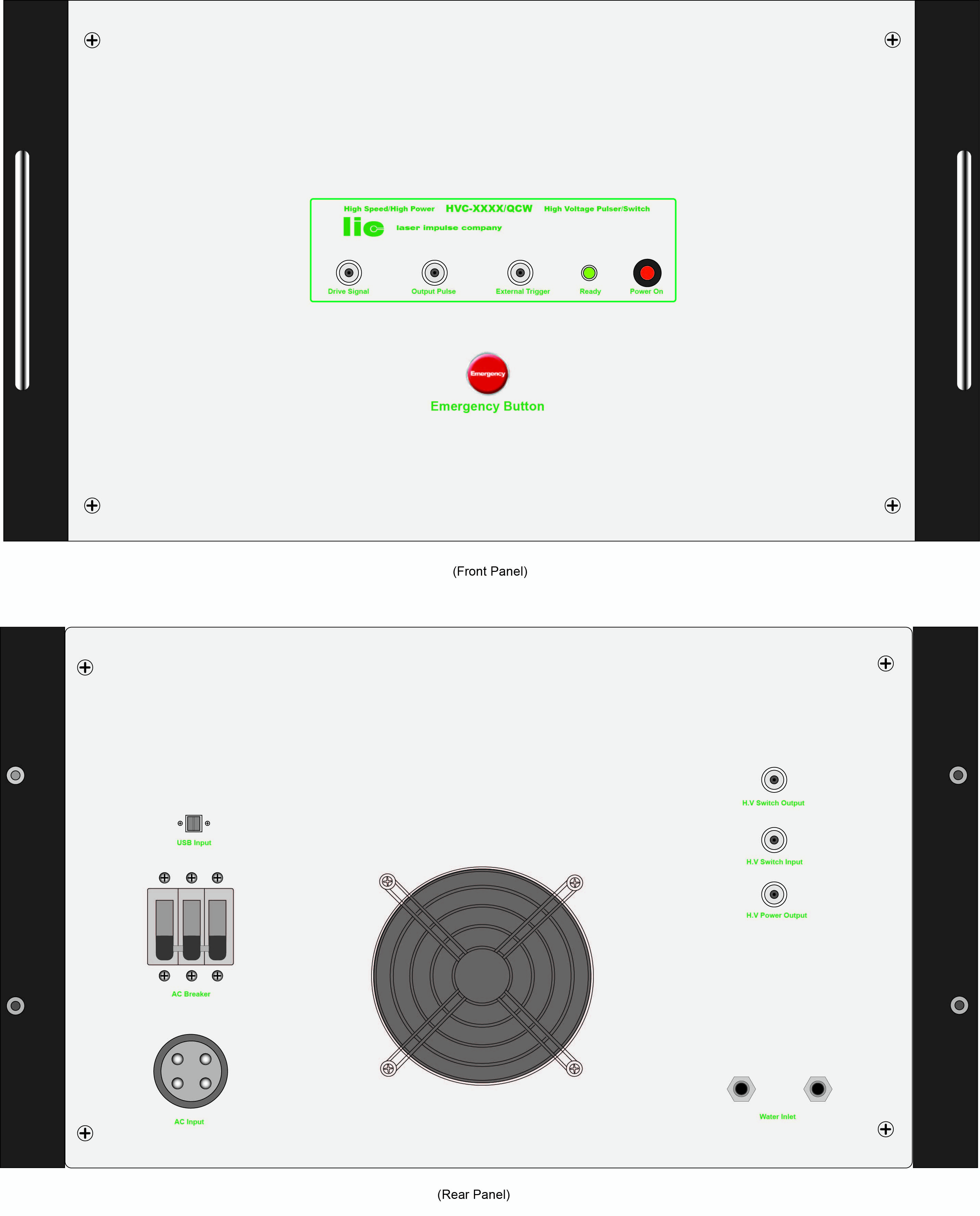

- HVC-200-20KV Control Panel
- HVC-200-20KV Control Panel
Specifications
- CW Average Power
- Up to 25KW
- Operating Voltage
- Up to 30KV continuously adjustable
- Output Configuration
- Positive Output (standard)
- Operating Mode
- CW, Pulse, toggled by a PC Screen.
- Pulse Rep. Rate
- Single shot to 10KHz
- Pulse Rise Time
- 5ns-1us (Depends on the model selected)
- Pulse Width
- 10ns to DC
- Pulse Duty
- 0-100%
- Note*: For the detail of available pulse conbination, please refer to Pulse Setting Manual.
- Ripple Current
- Less than 2% at a rated current
- AC Input Voltage
- 380V/480Vthree phase
- Efficiency
- Greater than 85%
- Current Monitor
- 50 Ohm BNC, 5-10mV/A
- External Pulse
- 1 Kohm BNC Input
- Protection mode
- Switching SW. Over current, Output SW. Over Current, Over Load, Pulse Width & Pulse Rate Protection, Over Temperature, Interlock.
- Dimensions
- 10.5″(H) x 19.0″(W) x 24.5″(L) inch
Weights
- 57 lb.
- Cooling
- Water Cooled
