Narrow Pulse,High Current Pulse Generator.
LS-1000 high frequency, high Current Pulse Generator can achieve the pulse rate up to 100KHz with the pulse width of 10ns-50ns.

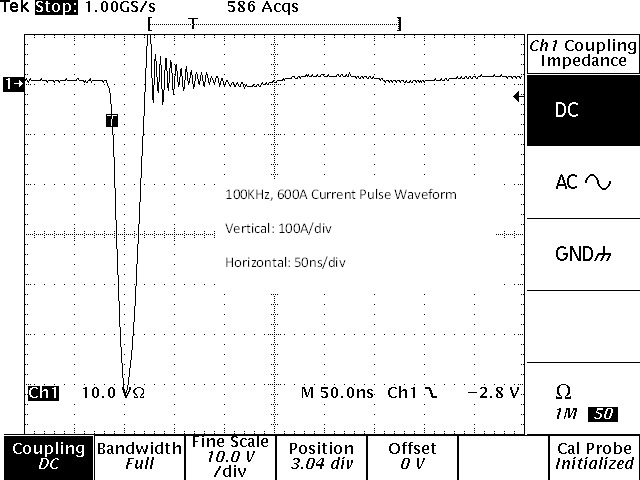

- Nanoseconds Pulser: Maximum frequency up to 100KHz
- Pulsed Laser Diode Driver for Vcsel LD/High Current Pulser: Up to 500A
- High Peak Power: Up to 1KW average power
Key Features
- High Frequency Pulse Generator to 100KHz
- High Current Pulse Generator to 500A
- High Voltage Pulse Generator to 1KV
- Pulse Width from 10ns to 50ns
Specifications
- CW average Power
- Up to 1KW
- Output Voltage
- Up to 1KV
- Output Current
- Up to 500A (Exponential)
- Output Configuration
- Negative Output (standard)
- Pulse Rep. Rate
- Single shot to 100KHz
- Pulse Rise Time
- Less than 4 ns
- Pulse Width
- 5ns to 100ns
- AC Input Voltage
- 90-120V (less than 500W of CW power), or 180-240V, single & three phase
- Efficiency
- Greater than 70%
- Current Monitor
- 50 Ohm BNC, 10mV-100mV/A
- External Pulse
- 1 Kohm BNC Input
- Protection mode
- Switching Over Current, Over Load, Over Temperature, Interlock.
- Dimensions
- 3.5″(H) x 17.0″(W) x 13.0″(L) inch,
- Weights
- 10.5 lb.
- Cooling
- Forced Air,
