Narrow Pulse, Gas Discharge & High Frequency Laser Diode Drivers/High Current Pulse Generator.

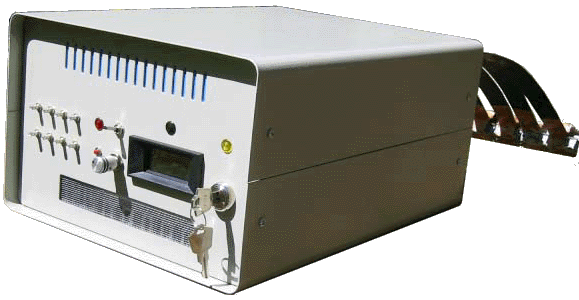

LS-XXXX -series high frequency, high pulsed laser diode drivers/power supplies, and gas discharge power supplies can achieve the pulse rate up to 5MHz with the pulse width of 5ns-50ns.
- High Speed Laser Diode Driver: Maximum frequency up to 5MHz
- Pulsed Laser Diode Driver/High Current Pulser: Up to 500A
- High Peak Power Laser Diode Driver: Up to 2KW average power
- Plasma Discharge Applications
Key Features
- High Frequency Plasma Discharge Power Supply to 5MHz
- High Current Pulse Generator to 500A
- High Voltage Pulse Generator to 15KV
- Pulse Width from 5ns to 50ns
- High Power up to 2KW CW Power
- Multi-Output: up to 8 independent Outputs
Specifications
- LS-2000 Waveform
- CW average Power
- Up to 2KW
- Output Voltage
- Up to 15KV
- Output Current
- Up to 500A (Exponential)
- Output Configuration
- Negative Output (standard)
- Pulse Rep. Rate
- Single shot to 5MHz
- Pulse Rise Time
- 3-15ns (Depends on pulse set & load condition)
- Pulse Width
- 5ns to 50ns
- AC Input Voltage
- 90-120V (less than 500W of CW power), or 180-240V, single & three phase
- Efficiency
- Between 75% and 85%
- Current Monitor
- 50 Ohm BNC, 10mV-100mV/A
- External Pulse
- 1 Kohm BNC Input
- Protection mode
- Switching Over Current, Over Load, Over Temperature, Interlock.
- Dimensions
- 7.0″(H) x 17.0″(W) x 13.0″(L) inch, below 2KW
- 10.5″(H) x 17.0″(W) x 15″(L) inch, 2.5KW to 8KW
- Weights
- 20.1 -30.5 lb.
- Cooling
- Forced Air, or Water Cooled (8KW unit)
- Option 1
- 2m Stripline
