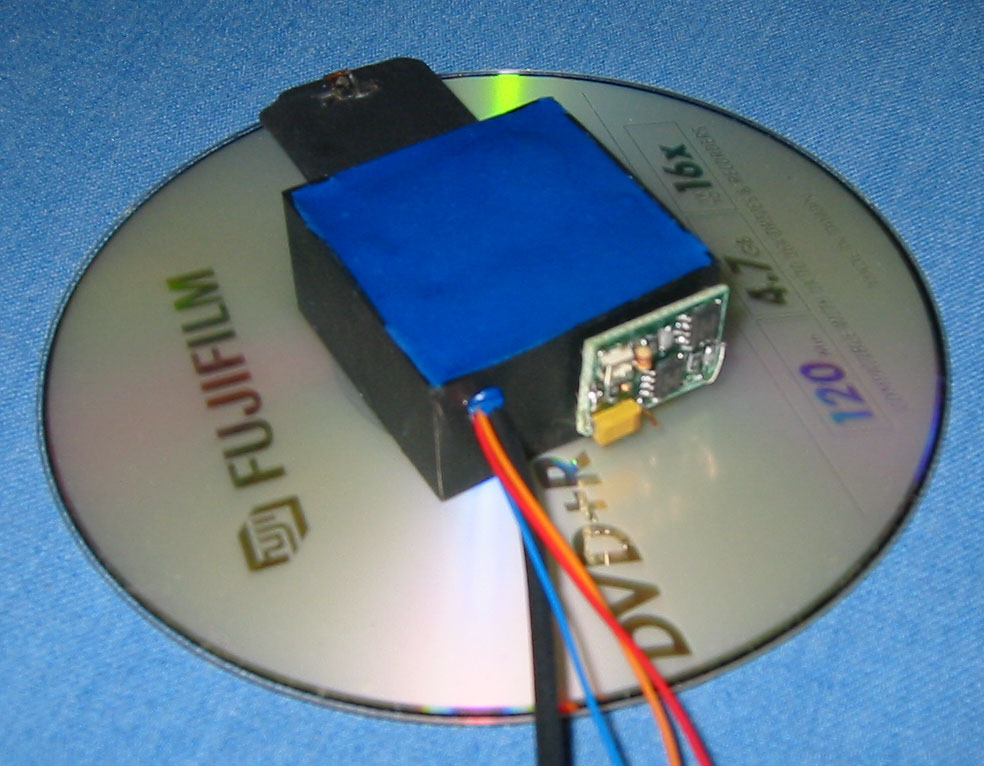

LSP-120 high speed laser diode driver/Pulse Generator is designed for space & weight limited special applications. It contains a built-in H.V power supply and oscillator so that user can supply only low DC voltage to operate the unit. It contains also a current monitor output.
- Pulse Rate from 1Hz to 10KHz
- Pulse Width from 5ns to 10ns
- High Current from 0A to 120A
- High Current Pulse Generator
Key Features
- High Speed Diode Driver to 10KHz
- Compact & Light Weight
- Fast Laser Diode Driver: Rise time of 2-3 ns
- High Current of 120A
- Built-in H.V power supply
Specifications
LSP-120:
- Output Current:
- Up to 120A Pulsed Peak Current
- Output Voltage:
- From 0V-1000V (User Controllable)

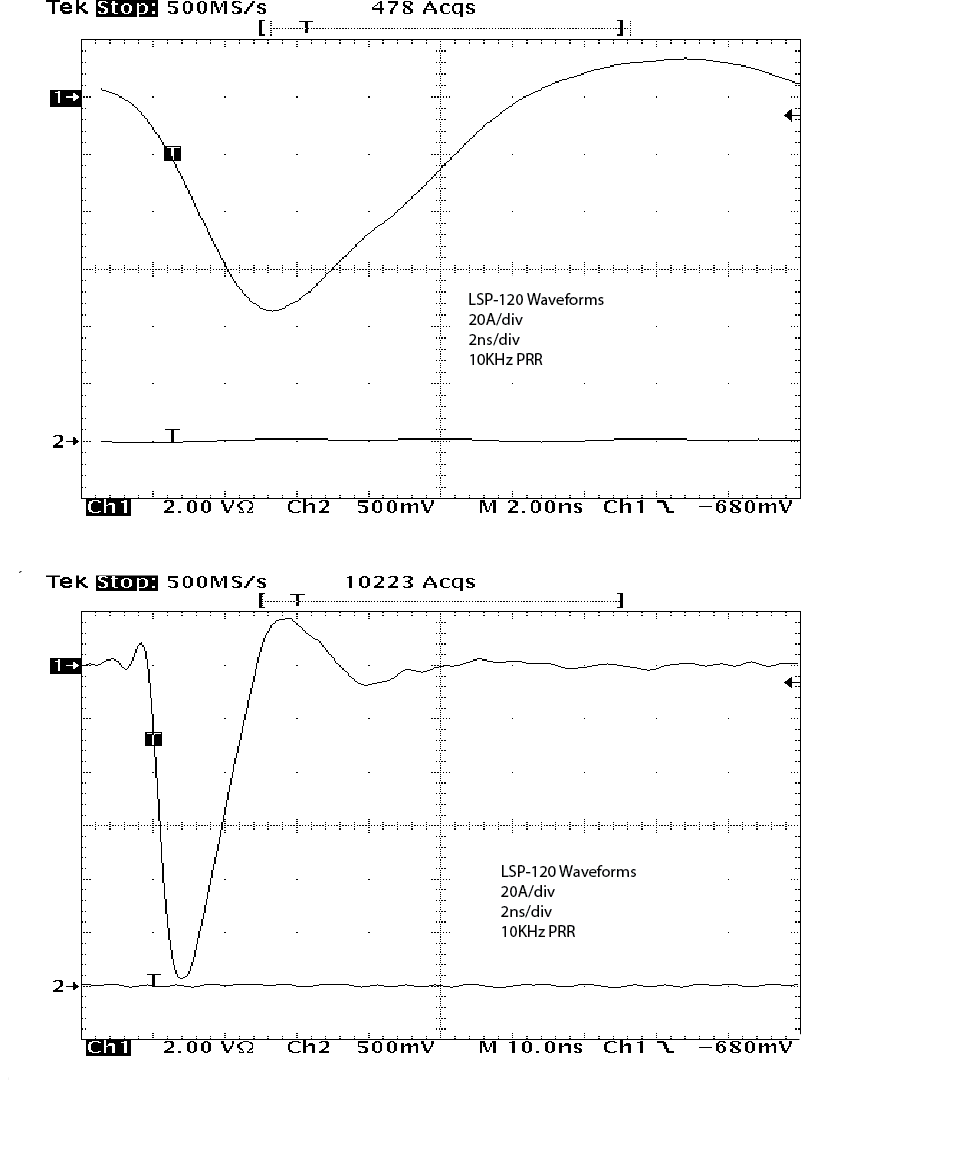

- Pulse Shape:
- Exponential
- Rise Time:
- 2ns-3ns
- Pulse Width (typical):
- 5ns, 10ns *1)
- Maximum Pulse Rate:
- 10KHz *2)
- Output Terminal:
- 0.6″x0.6″ Stripline
- Dimension:
- 1.57″(W)x1.57″(L)x0.59″(H) excluding stripline.
- Weight:
- 3.4 OZ
- Cooling:
- Convection Air Cooled.
- Note *1):
- Pulse With is user selectable (Factory Set).
- Note *2):
- Maximum Pulse Rate depends on the capacity of the H.V source. Contact to Factory for detail.
