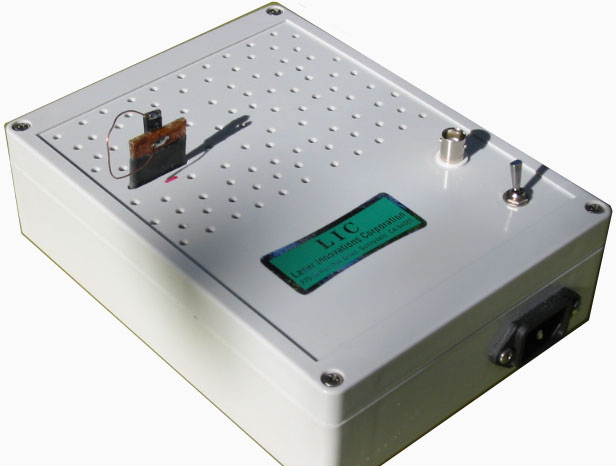

LSP-2500-XXX-XX is designed for driving Vcsel (Vertical-Cavity Surface-Emitting Laser) diode and for high speed, high voltage, high current pulse applications that includes:
- High Current Pulse Generator
- Pockels Cell Driver
- High Voltage Pulse Generator
- H.V Trigger Circuit
- Thyratron Replacement
Key Features
- Ultra High peak Current Laser Diode Driver: Up to 5KA
- Ultra High Voltage Laser Diode Driver/High Voltage Pulse Generator: to 15KV
- Pulse Width: 10ns – several hundred nano-seconds
- Rise Time: 3ns-15ns
Specifications
LSP-2500-20N-15KV Waveforms

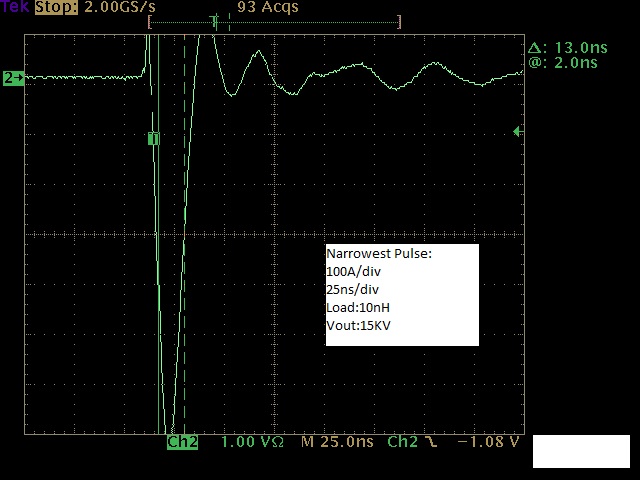

Narrowest Pulse

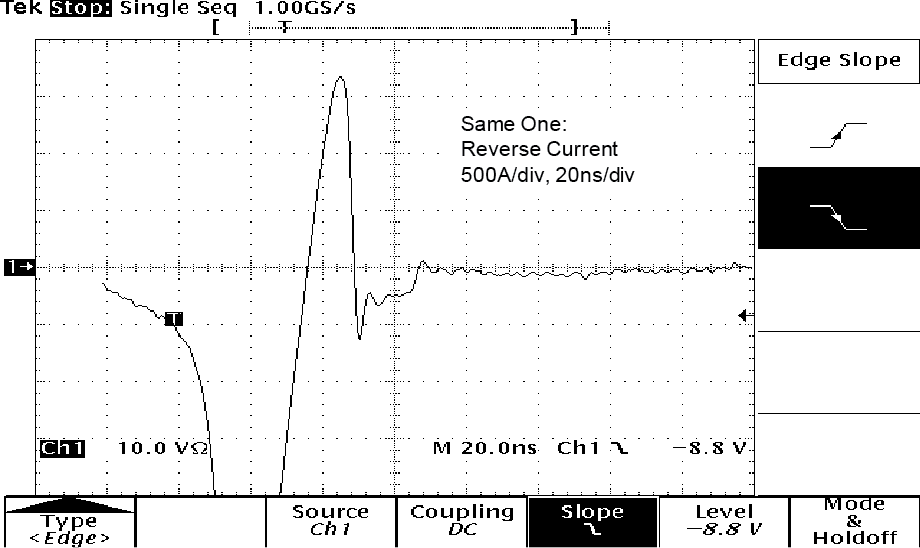

5KA Pulse
AC Input Voltage:115V-240V
Output Current:LSP (Lic Super Pulse):2.5KA-5KA, peak current
Output Voltage:15KV (User Selectable)
Average Output Power: 10W-1KW
Pulse Shape:Fast rise with an exponential curve
Rise Time:3ns-15ns
Pulse Width (typical):10ns-100ns*1)
Maximum Pulse Rate:1KHz*2)
External Pulse Input:50ohm BNC, 10-12V, 10ns rise time
Current Monitor:50ohm BNC, 100mV/A
Note *1):Pulse With is user selectable (Factory Set).
Note *2):Maximum Pulse Rate is depend on the capacity of the H.V source.Contact to Factory for detail.
Dimension (Including H.V power supply):6″(W)x8(L)x3″(H) – 17′(W)x13″(L)x5″(H) Excluding Stripline
Weight:5 lb – 30 lb
Cooling:Convection Air Cooled, or Forced Air Cooled
