LWG Series High Power Laser Diode Driver

View Product Manual

The LWG Series Kilowatt High Power Pulsed Laser Diode Driver delivers incredibly stable output even at maximum output levels for the most demanding applications. Featuring a tight feedback control circuit and minimal current droop, this driver is state of the art.

Highlights

  • Illuminate Possibilities with Hyper-Power QCW Laser Diode Driver: Huge Power both for CW & QCW of 5-25KW CW/1MW QCW
  • Powerful QCW Capacitor Charging Power Supply for Kilowatt Laser Diode Driver: Tight feedback circuit to keep a stable and precise constant current,
  • Ultra-Fast Response Time: Experience rapid current modulation for instantaneous laser intensity adjustments.
  • Huge Capacitor Bank: up to 500 F (Farad) for the Best Current Droop at High Current & Long Pulse
  • Ultra Long Pulse with Kilo-amps Output: 60ms pulse width at 1.3KA current with 1% current droop!!

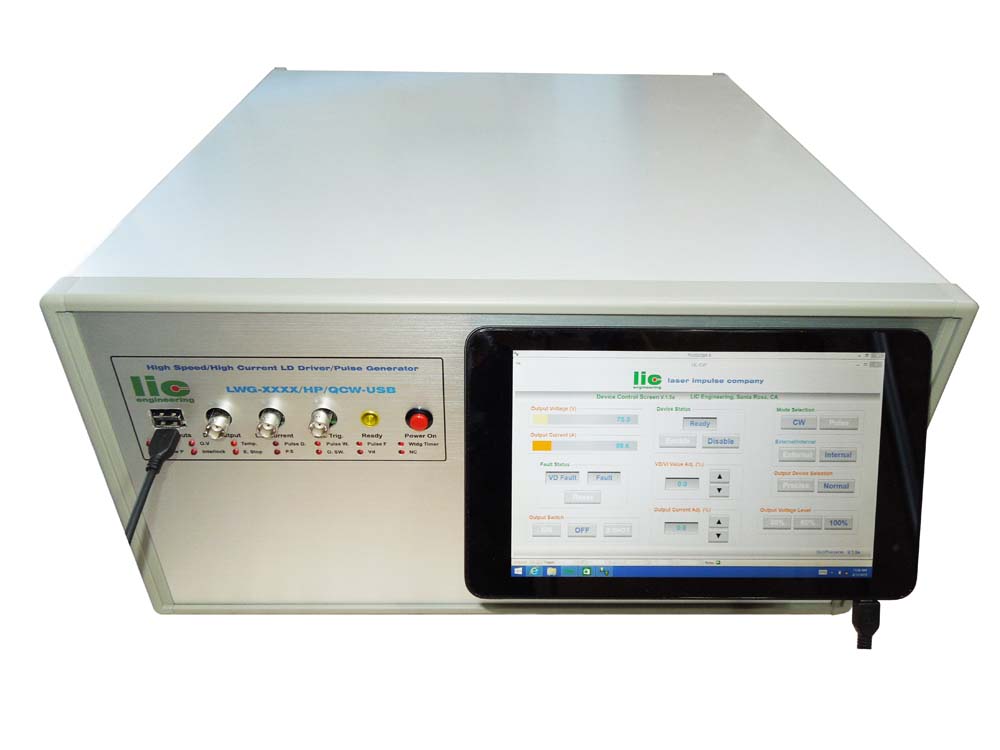

  • Touch Panel Control: Optional tablet terminal can be a touch screen control
  • High current/High voltage/High Speed Laser Diode Driver: Up to 2KV/5KA at 100ns-10us rise/fall time
  • Most Popular model: Affordable Price
  • Double Isolated USB 2.0 Interface for highest noise immunity in harsh industrial environments

LWG Series 5-25Kilowatts High Power QCW Pulsed Laser Diode Driver

  • Industrial Innovation: Boost your manufacturing capabilities with cutting-edge laser technology.
  • Built in the Oscilloscope: No need any expensive instruments to measure & watch LD waveforms!
  • Ultra-High Current/Long Pulse: 1.3KA/60ms current pulse with 1% Current Droop!!
  • Easy Control: Everything is controlled by user’s PC, or Optional Tablet Terminal
  • Digital Oscilloscope/Spectrum Analyzer/Pulse Generator as Options: up to 10MHz/60MHz and100MHz-500MHz bandwidth as an option
  • High speed current sensing device to sense and display in real time.  Output current is sampling and regulated every micro-seconds.  This technique guarantees the precise constant current control for customer’s wide range of Laser diodes.
  • Output Voltage Selection features to maximize the 100% output power at very low output voltage: LWG-XXXX/QCW can maintain 100% of rated output power even at 30% of rated output voltage.  This is also a unique feature of LIC’s LD drivers.

LWG-XXXX/QCW/HP/USB Control Screen

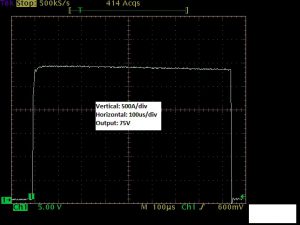

LWG-XXXX/QCW/USB – 2.7KA/800us – Medium Pulse Width Waveform

 LWG-XXXX/QCW/USB – 1.3KA/60ms – Ultra Wide Pulse Waveform

Specifications

Ultra-High Power Laser Diode Driver Specification:

Electrical

CW average power: Up to 25KW (Water Cooled), Up to 10KW (Air Cooled)
QCW power: 250KW-1MW
QCW output voltage: up to 2KV
QCW output current: Up to 2KA
QCW pulse rate: Single Shot to IMHz Maximum, +/-50ppm accuracy
QCW rise/fall time: IOOns-50us depends on the models
QCW pulse width: lus — 10 seconds depends on the models
QCW pulse duty: up to 100%
QCW current droop: 0.1% to 15 % depends On the models
CW Output voltage: up to 2KV
CW Output current: up to 200A
Ripple Current: 0.5% to 5% depends on the models
Operating mode: QCW & CW
AC input voltage: 220V +/- 10%, three phase
Capacitor charging power supply: Built in, Up to 25KJ/S (Watercooled), 10KJ/S(Air Cooled)
Output voltage selection: 30%,60%, 100% optional
Protection circuits: 1) Switching over currents, 2) Load over currents, 3) Over load,
4) Over temperature, 5) Pulse width/pulse rate, 6) interlock
7) others (total 15 parameters) Refer to manual for detail.
Current monitor sensitivity: Depends on the models
Current display: Real time 10 digit A/D converter resolution
Voltage display: Real time 10 digit A/D converter resolution
Trigger mode: Internal pulse, External signal & Manual mode
Sync. output: IKO BNC
Sync. delay: Programmable On AWG window
External trigger input: IKO BNC
Pulse generator output: 2Vp-p, at 6000 impedance
Interface: Isolated USB2.O
Available driver: LabView
Control terminal: Windows base PC and Optional Tablet PC (Windows 7, 8.1 & 10)

Mechanical

Cooling: Forced air
Output cable: Custom made stripline 1m
Ambient operating temperature: 0-40 ‘C
Storage temperature: 0-80
Ambient humidity: Less than 80% (not condensed)
Dimensions: 8.7″ (H) x 17.0″ (W) x 17.7″ (L)
*1) Current droop depends on the pulse width selected.
*2) N/A
*3) N/A
