Unique Core Design

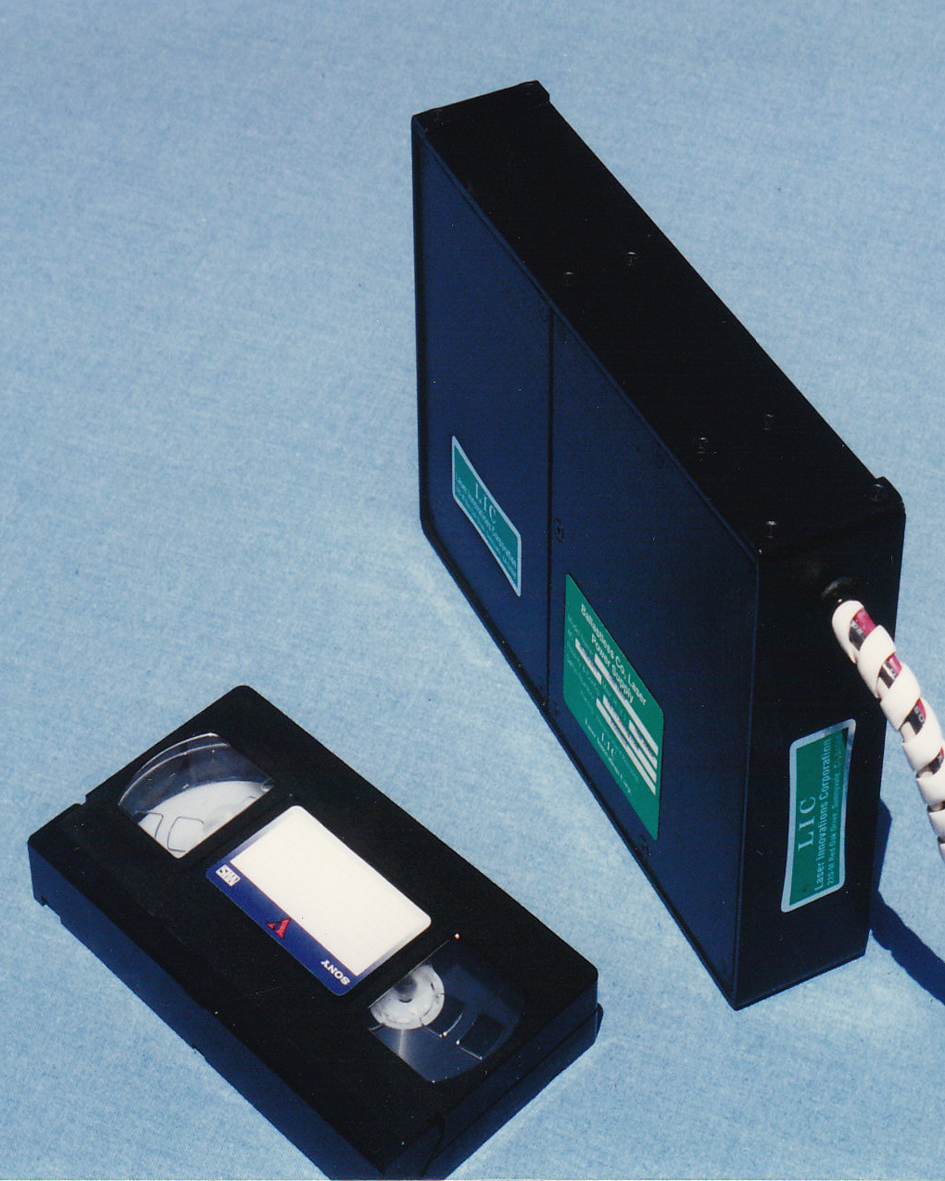

The output transformers are very thin, which helps the heat conduction effectively to the water channel and keeps the H.V components operating temperature low. This results in the highly reliable and the most thin & compact switch-mode CO2 laser power supply.
- Designed for Industrial Applications
- Good for Axial Fast Laser, Slab Laser & Slow Flow Laser
- Compact 2KW Water Cooled CO2 Laser Power Supply
- Portable CO2 Laser Power Supply
- Long Run Products
Key Features
- Multiple Outputs up to 4 Outputs
- Most Popular Model
- Modular Design in H.V Blocks
- Ballastless Operation
- No Maintenance Required
Specifications
- Output Power:
- 2KW (CSF-2000P/PD), 1.2KW(CSF-1200PQ)
- Striking Voltage:
- 25KV *1)
- Operating Voltage
- 4KV to 25KV
- Output Configuration:
- P: Single Output, PD: Dual outputs
PQ: 4 Outputs - Operating Current
- Total 100mA
- Operating Mode
- CW & PULSE
- Pulse Rep. Rate
- DC to 2KHz
- Pulse Width
- 200µs to DC
- AC Input Voltage
- 180-240V
- Efficiency
- Greater than 91% (Maximum Efficiency)
- Regulation
- Less than 2%
- Protection Mode
- H.V. Over current, H.V. Over voltage, IGBT Over current, Over Temperature
- Control Signal
- 0-5V Ground referenced signals:
- LASER, READY, POWER, FAULT, RESET, GND, +5V
- Refer to Control Signal for detail
- Dimension
- 2.78″(H)x8.70″(W)x11.50″(L) inch
- Weight
- 10.4 lb
- Cooling
- Water Cooled, 1/4″ OD copper inlet/outlet
- Options
- 1) Higher Striking Voltage to 35KV
- 2) H.V Current/Voltage readout
