- Series Resonant Topology:
Since the first product was developed in early 1980s, Lic’s switch-mode CO2 laser power supply has used the series resonant topology, which make a switching current “sinusoidal”, or ”zero-current switching” to make the switching loss minimal and is able to push a very high current into the secondary circuit in very short time. This sinusoidal switching, or zero-current switching technology makes Lic’s products high efficient, compact, and reliable power supply. - Designed for Industrial Applications
- Good for Axial Fast Laser, Slab Laser & Slow Flow Laser
- 4KW High Power with compact design

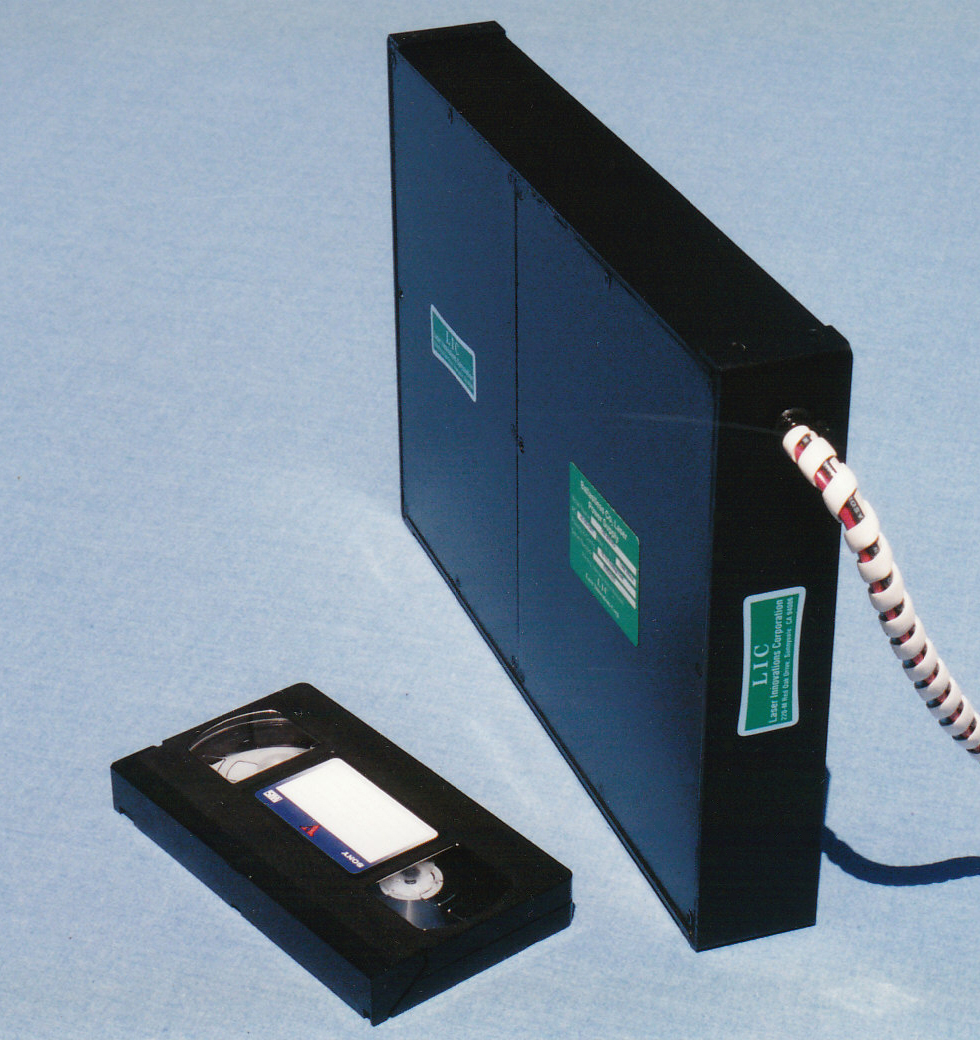

- Thin Flat Box H.V power supply/CO2 laser power supply
Key Features
- Unique Core Design:
The output transformers are very thin, which helps the heat conduction effectively to the water channel and keeps the H.V components operating temperature low. This results in the highly reliable and the most thin & compact switch-mode CO2 laser power supply. - Ballastless Operation
- No Maintenance Required
- Multiple Outputs up to 4 Outputs
- Modular Design
- No Maintenance Required
Specifications
Output Power:
- 3.4KW(CSF-3400PQ/PO), 4KW(CSF-4000P/PD)
- Striking Voltage:
- 25KV *1)
- Operating Voltage
- 4KV to 20KV
- Output Configuration:
- P: Single Output, PD: Dual outputs
PQ: 4 Outputs, PO: 8 Outputs - Operating Current
- Total 400mA *2)
- Operating Mode
- CW & PULSE
- Pulse Rep. Rate
- DC to 2KHz
- Pulse Width
- 200µs to DC
- AC Input Voltage
- 180-240V
- Efficiency
- Greater than 94% (Maximum Efficiency)
- Regulation
- Less than 2%
- Protection Mode
- H.V. Over current, H.V. Over voltage, IGBT Over current, Over Temperature
- Control Signal
- 0-5V Ground referenced signals:
- LASER, READY, POWER, FAULT, RESET, GND, +5V
- Refer to Control Signal for detail
- Dimension
- 2.73″(H)x10.60″(W)x14.50″(L) inch
- Weight
- 17.5 lb
- Cooling
- Water Cooled, 1/4″ OD copper inlet/outlet
- Options
- 1) Higher Striking Voltage to 35KV
- 2) H.V Current/Voltage readout
